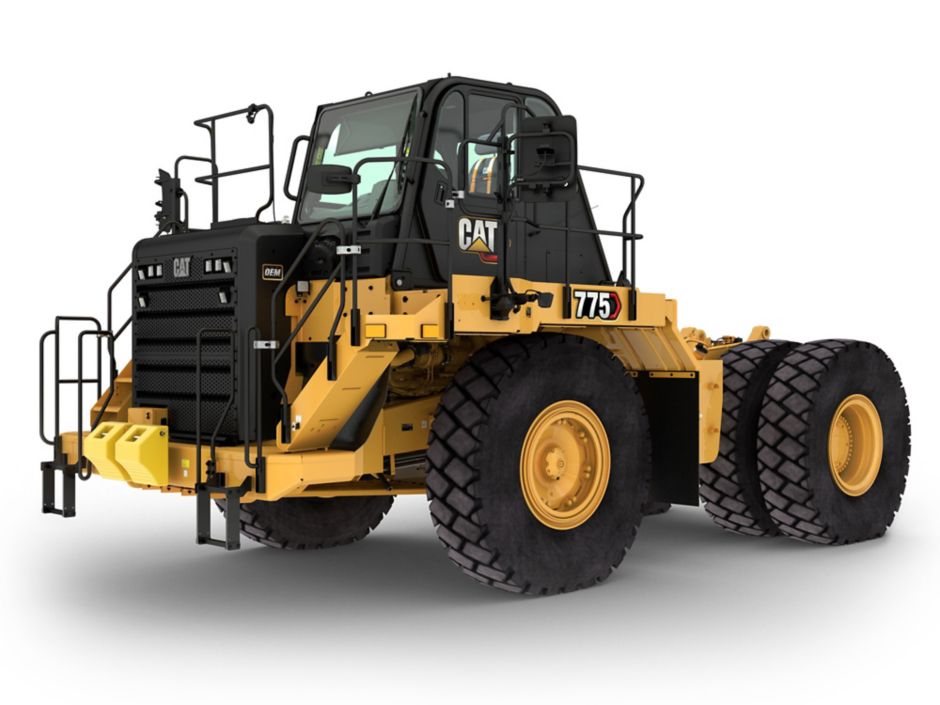

Caterpillar offers partial machines and systems, working with Cat® dealers and Original Equipment Manufacturers (OEMs) to provide specialty machines for specific applications. Bare chassis trucks can be ordered with or without hoist cylinders and most product options are identical to the dump truck models.These models come equipped with a higher Tractor ROPS certification for specialty machines including water trucks, tow trucks, and fuel / lube trucks. You'll find these partial machine configurations are used in construction, demolition, waste, material handling, and mining industries. These bare chassis options allow you to purchase complete solutions from your Cat dealer, with additional service and support.
Cat® Off-Highway Truck Bare Chassis ROPS is certified to ISO 3471 Tractor criteria, to provide a higher level of protection for to…

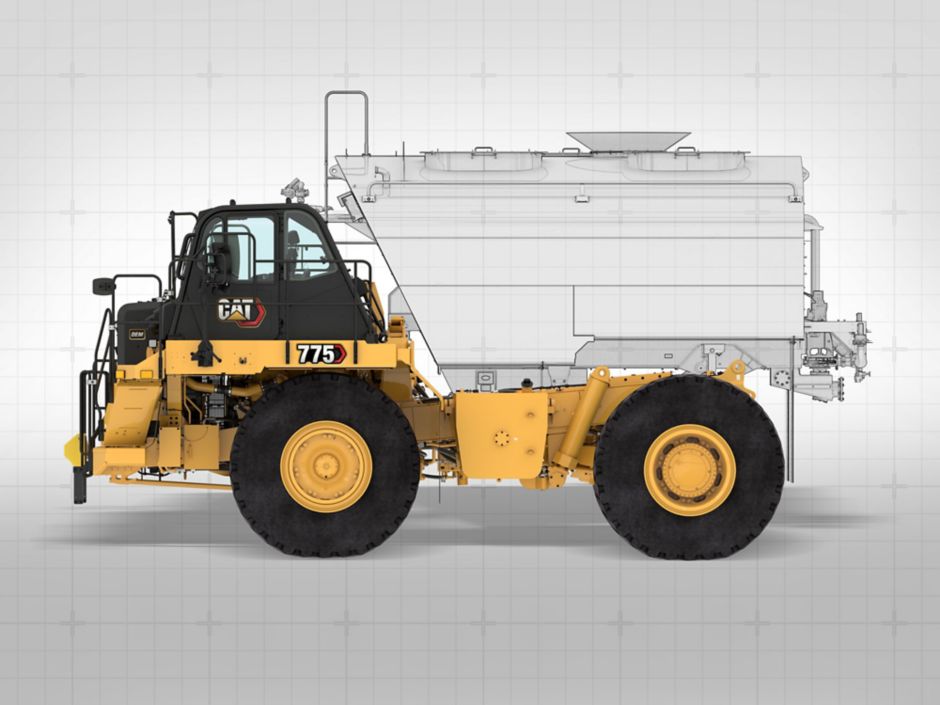

Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for water truck applications in both…
Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for service truck applications in bo…
Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for tow applications. Using an off-highway truck bare c…
Specification | Value |
Engine Model | Cat® C27 |
Gross Power - SAE J1995 | 615 kW |
Rated Net Power - SAE J1349 | 584 kW |
Bore | 137 mm |
Stroke | 152 mm |
Displacement | 27 l |
Note | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. Specifications shown are for LRC model. |
Specification | Value |
LRC Bare Chassis Weight without Hoist | 34.073 kg |
LRC Bare Chassis Weight with Hoist | 34.621 kg |
LRC Gross Vehicle Weight (Target) without Hoist | 111.812 kg |
LRC Gross Vehicle Weight (Target) with Hoist | 111.812 kg |
HRC Bare Chassis Weight without Hoist | 34.733 kg |
HRC Bare Chassis Weight with Hoist | 35.281 kg |
HRC Gross Vehicle Weight (Target) without Hoist | 111.812 kg |
HRC Gross Vehicle Weight (Target) with Hoist | 111.812 kg |
Note | LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets. |
Specification | Value |
Nominal Water Tank Capacity | 56.775 l |
Specification | Value |
Tractor ROPS | 38.686 kg |
Specification | Value |
Forward - 1 | 10.6 km/h |
Forward - 2 | 15 km/h |
Forward - 3 | 20.3 km/h |
Forward - 4 | 27 km/h |
Forward - 5 | 36.7 km/h |
Forward - 6 | 49.4 km/h |
Forward - 7 | 66.9 km/h |
Reverse | 14 km/h |
Note | Maximum travel speeds with standard 24.00R35 (E4) tires |
Specification | Value |
Brake Surface - Front | 655 cm² |
Brake Surface - Rear | 61.269 cm² |
Specification | Value |
Fuel Tank Capacity | 795 l |
Cooling System | 171 l |
Crankcase | 90 l |
Differential - Final Drives | 145 l |
Steering System - Including Tank | 54 l |
Brake/Hoist Hydraulic Tank | 176 l |
Brake Hoist System | 322 l |
Specification | Value |
Steering Standards | ISO 5010:2007 |
Steer Angle | 31 ° |
Turning Diameter | 23.5 m |
Turning Circle - Clearance Diameter | 26.1 m |
Learn more information about the Cat 775G Off-Highway Truck Bare Chassis.
