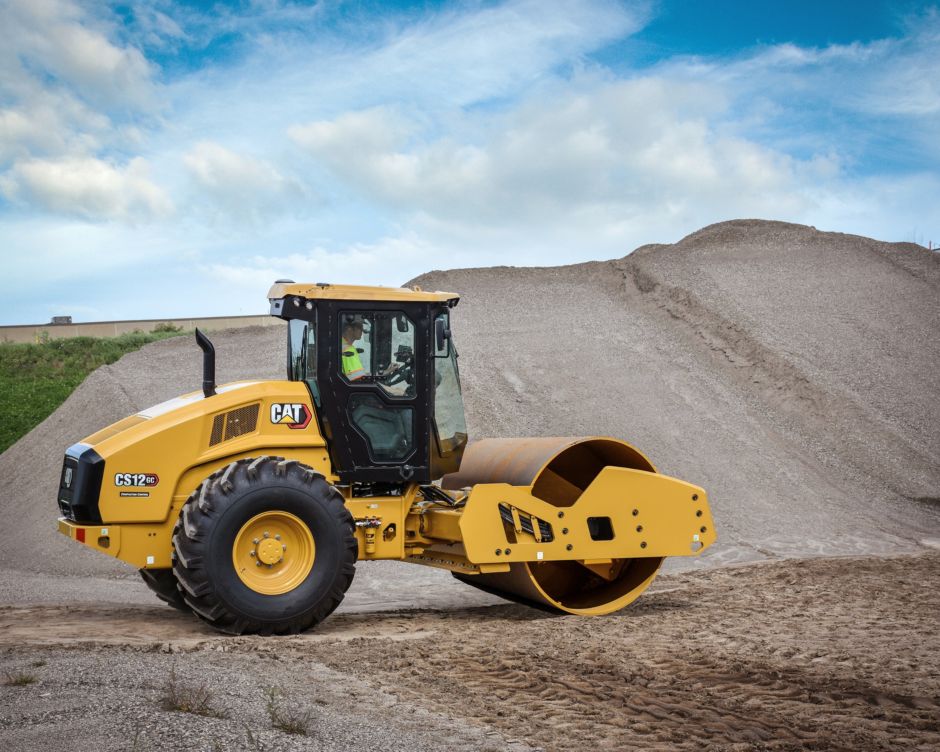

GC Vibratory Soil Compactors deliver dependable, economical production with performance that exceeds expectations.
The steering console features an LCD display. The display provides diagnostics and additional data to the operator. Machines that…
GC Vibratory Soil Compactors feature a Cat engine that offers enhanced efficiency, better serviceability, ample power, and less no…
Cat Compaction Control can be augmented by adding an optional Global Navigation Satellite System (GNSS) mapping antenna and a dedi…
Design provides ground level access to all service and maintenance points. Long service intervals contribute to more produc…
GC vibratory soil compactors deliver excellent compaction performance due to high amplitude and static linear load. GC mach…
Specification | Value |
Operating Weight - With Cab | 12.653 kg |
Operating Weight - With ROPS/FOPS Canopy | 12.499 kg |
Operating Weight - With Sun Canopy | 12.321 kg |
Weight - Drum with ROPS/FOPS Canopy | 7.715 kg |
Weight - Drum with Sun Canopy | 7.646 kg |
Weight - Drum with Cab | 7.758 kg |
Specification | Value |
Compaction Width | 2.134 mm |
Curb Clearance | 492 mm |
Ground Clearance | 518 mm |
Turning Radius - Inside Drum Edge | 3.9 m |
Travel Speed - Maximum | 11 km/h |
Static Linear Load - With ROPS/FOPS | 27.6 kg/cm |
Specification | Value |
Gross Power | 83 kW |
Engine Model | Cat C4.4 |
Net Power - ISO 9249 | 79.4 kW |
Net Power - SAE J1349:2011 | 78.5 kW |
Stroke | 127 mm |
Bore | 105 mm |
Specification | Value |
Overall Length | 5.7 m |
Overall Width | 2.3 m |
Drum Width | 2.134 mm |
Maximum Height | 3 m |
Drum Diameter | 1.535 mm |
Wheel Base | 3 m |
Specification | Value |
Nominal Amplitude - High | 2 mm |
Nominal Amplitude - Low | 1 mm |
Centrifugal Force - Maximum | 250 kN |
Centrifugal Force - Minimum | 149 kN |
Vibratory Frequency - Ecomode | 1716-1800 vpm |
Vibratory Frequency - Ecomode | 28.6-30 Hz |
Vibratory Frequency - Standard | 30-33 Hz |
Vibratory Frequency - Standard | 1800-1980 vpm |
Specification | Value |
Fuel Tank Capacity | 248 l |
Specification | Value |
Tires | 23.1 x 26 |
Learn more information about the Cat CS12 GC Vibratory Soil Compactor.
